Clever Building Products Making Deck Building Easier!

Did you know that approximately fifty percent of decks in Australia are built less than one metre off the ground?

KlevaKlip has released a range of purpose-built building products designed to make the building of these low-lying decks faster, easier and less hassles.

KlevaKlip Sub-Structure Products

- Patio Deck Kit - for Super-Low decks over concrete slab 35mm. Adjustable Joist Support – for decks over concrete slabs 76mm - 220mm. - Multi-Purpose Support – provides top of joist/bearer heights 180mm - 430mm off ground - Adjustable Bearer Support - for decks 390mm to 67mm off the ground.

KlevaKlip Connectors

- FREP Joist Hanger ( Fibre Reinforced Engineering Polymer) suits 90mm x 45mm & 140mm x 45mm Joists and the Joist Connector for attaching 45mm wide joists to 45mm,70mm,90mm Bearers

KlevaKlip Sub-Structure Products

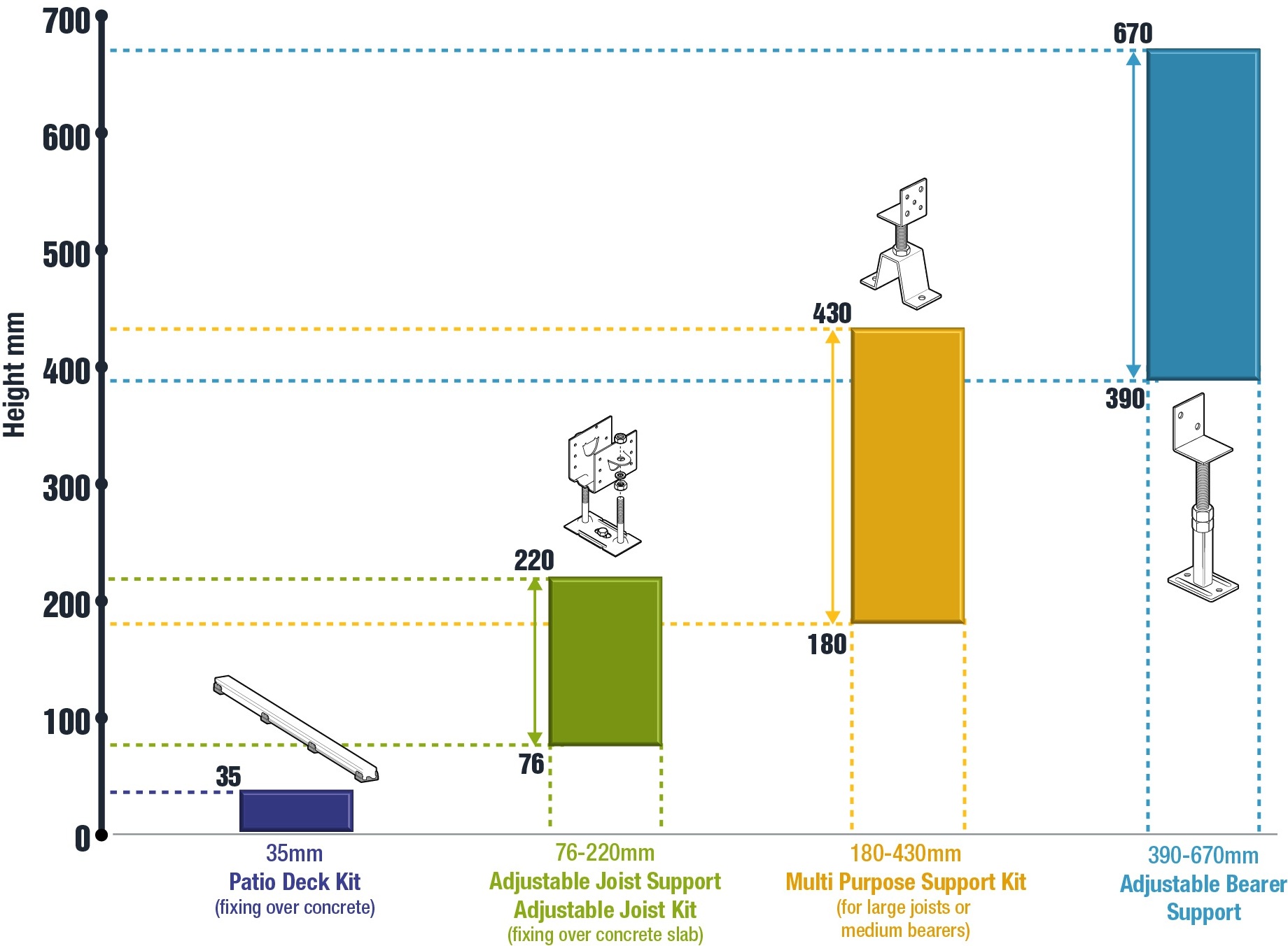

Typical " top of joist " heights achievable with KlevaKlip Deck Building Products







 Download Deck Building Products Brochure

 Download Patio Deck Kit Brochure

Check out this intro video for all our range of deck building products:

PATIO Deck "Kit" (PDK)

Watch our Patio Deck Kit Install Video

Enables super-low decks to be built over concrete or tiled surfaces  and provides a top-of-joist height of 35mm (1.4inches) .

Being Engineered Aluminium profile won't rot like timber or rust like steel and the strong nylon base clips will last the life of your deck.

For further details please follow this link: https://klevaklip.com.au/Patio-Deck-Kit

Adjustable Joist Support (AJS)

Watch our Adjustable Joist Support AJH45G (Aus/NZ) Install Video

Watch our Adjustable Joist Support AJH38G (USA) Install Video

The Adjustable Joist Support has been designed specifically to enable decks to easily be built over concrete slabs in areas where limited ground clearance is available. It is ideal for use when the step-down from your door to your concrete slab is between 100mm / 4 inches (minimum) and around 260mm /10 inches (maximum).

There are two types of Adjustable Joist Supports for the Australian & New Zealand markets the AJ45KIT and AJH45G- both has been specifically designed to be used with 45mm wide treated pine timber joists.

AJ45KIT Now Available

The AJ45KIT comes with bolts, nuts, washers & masonry anchors included.

The AJH45G does not include  bolts,nuts,washers etc. These must be purchased via your merchant/hardware store. For further details please follow this link:

 https://klevaklip.com.au/Joist-Supports

The AJH38G (metrically measured) has been specifically designed to be used with 2 inch wide pressure treated timber joists for US markets.

Keeps your joists off the concrete and free of unwanted moisture ingress.This prevents joist-rot through the bottom of joists.

Is ideal for use on area where the concrete has built in "fall" - to provide a level deck.

Quick and easy to use – purpose-built for the application

Gives a neat, professional look across your deck structure without  resorting to various different packers and   brackets to achieve your end result.



Multi Purpose Support "Kit" (MPS)











The Multi-purpose support has been designed as a mid-sized support to cater for the “gap” between our “Adjustable Joist Support” and our “Adjustable Bearer Support”

Enables super-low decks to be built over concrete or tiled surfaces  and provides a top-of-joist height of 35mm (1.4inches) .

The Multi Purpose Support has excellent adjustability, along with the strength and versatility to be used with either bearer/joist combinations, or with joists on their own. Coming in a “kit” form, it is efficiently packaged and quick and easy to assemble. All parts are fully hot dip galvanised.

For further details please follow this link: https://klevaklip.com.au/Multi-Purpose-Support

Adjustable Bearer Support (ABS)

Watch our Bearer Supports Install Video

Every deck starts with the process of getting the substructure right - if it isn't properly spaced out and level, the chances of building the deck correctly are almost zero.

Therefore time must be spent on getting the posts or piers set to the correct height across the deck - a job made even more difficult if the ground is not level.

The clever people from KlevaKlip have introduced the Adjustable Bearer Support.

Extremely easy-to-use, and suited for decks up to approximately 600m off the ground, the Adjustable Bearer Support allows you to be much less critical with your height measurements in the knowledge that you can simply wind the bearer support up or down to set your perfect height.

It will save lots of time and make your job so much easier.

FREP Joist Hanger

Watch our FREP Joist Hanger Install Video

Finally there is a reasonably priced, corrosion-proof joist hanger on the market.

The new FREP Joist Hanger ( Fibre Reinforced Engineering Polymer) is strong- engineered to last, light weight, easy to use, has no sharp edges, and will not corrode in any environment.

NJH9045 suits 90mm x 45mm Joists upwards

NJH14045 suits 140mm x 45mm Joists upwards

Joist Connectors

Watch our Joist Connector Install Video

The range of KlevaKlip Joist Connectors have revolutionised the way joists are attached to bearers.

 An absolute must for every handyman and quickly becoming the preferred fixing method of many builders, the

Joist Connector makes the set-out and fixing off of your substructure a breeze.
