Double Triple & Joist Connectors

Double Triple & Joist Connectors Australian PATENT 2015203723 United States Patent 9637911

Plastic? No – we like to refer to our Double Triple & Joist Connectors as being made from “Engineering Polymer” and is used in engineering applications throughout the world due to its strength, toughness and resilience under load. It is not your everyday plastic and will last the life of your deck.

What is the KlevaKlip Double Triple & Joist Connector?

The Double Triple Connector fits 45 mm wide joists to most size bearers and the Joist Connector range comes in two sizes for 45 mm Joist to 70 mm and 90 mm wide bearers.The difference between them is the Double Triple Connector fits most size bearers and has two fixings to one side of the bearer and two fixings to the top of the bearer. The Joist Connector is fixed to both sides of the bearer and is size specific to either 70 mm or 90 mm wide bearers. Fixings to the joist is the same for both products.

The range of KlevaKlip Double Triple & Joist Connectors have revolutionised the way joists are attached to bearers. An absolute must for every handyman and quickly becoming the preferred fixing method of many builders and makes the set-out and fixing off of your substructure a breeze.

Will not rust in any harsh environment

Keeps your joists dry and prevents moisture -initiated degradation of joists and bearers caused by skew nailing.

Dramatically simplifies the set-out of your joist/ bearer substructure allowing you to lay out joists standing in position and either fix with gun nail (easiest and quickest), manual nails or screws.

4 mm ventilation ribs in the Double-Triple Connectors base keeps joist dry and free from rot

No more split joists associated with inaccurate skew nailing.

Keeps your joists dry and prevents moisture -initiated degradation of joists and bearers caused by skew nailing.

Unlike triple grips, fixes and provides stability to both sides of the joists, plus easier to use and wont rust in any environment.

Extremely strong connection - no longer is the joist/bearer interface the weakest connection in your deck.

Can be painted without problems of paint adherence.
Faster to install – whether by screws, nails, or nail-guns
Faster to install – whether by screws, nails, or nail-guns

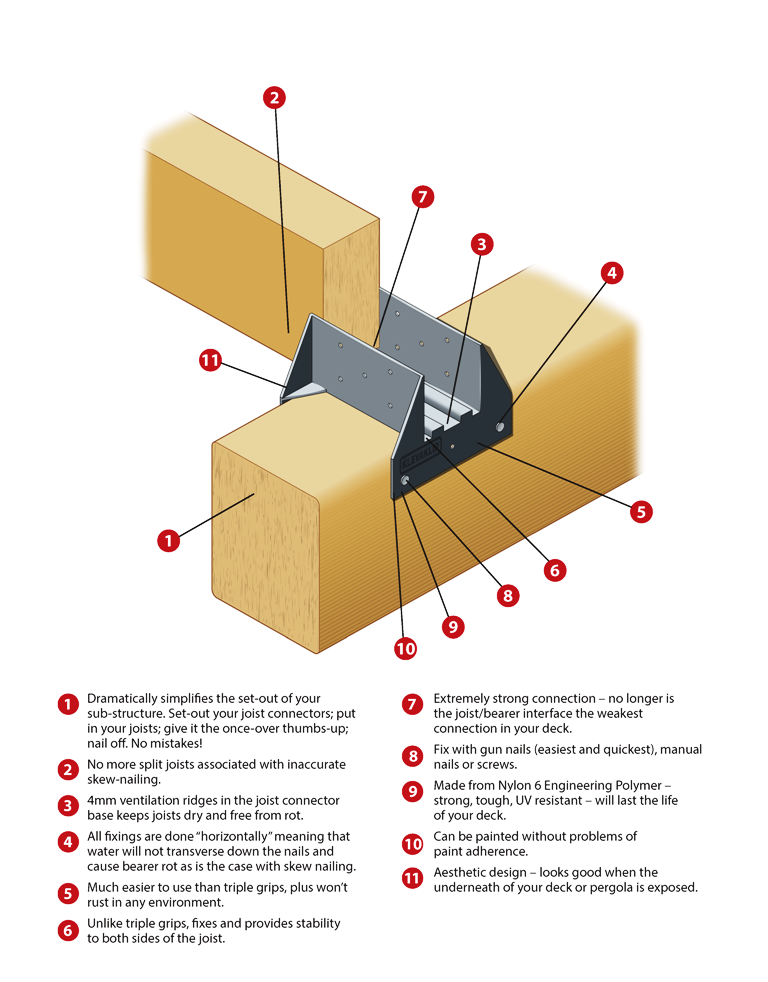

Joist Connector Features

Product Grid

The Double Triple Connector fits 45 mm wide joist to most size bearers and the Joist Connectors has been designed to attach 45 mm width Joists to both 70 mm & 90mm width Bearers

Click to enlarge

Product	Size/Fit	Box Items

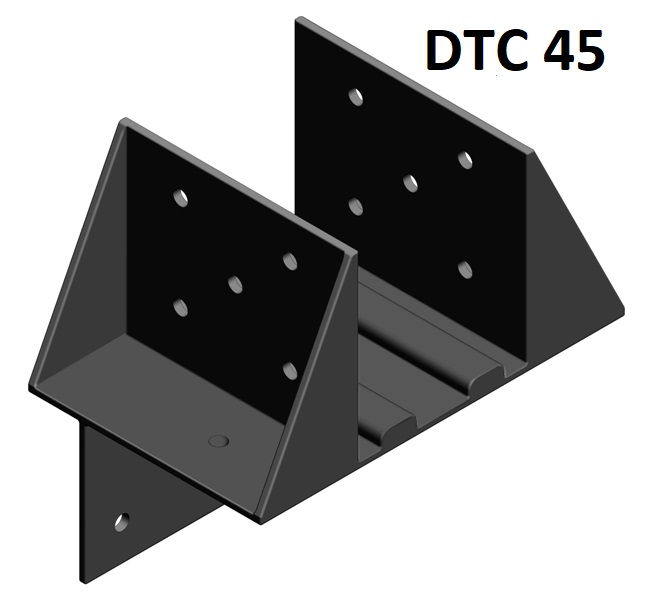

DTC45	to attach 45mm width joist to most size bearers	40

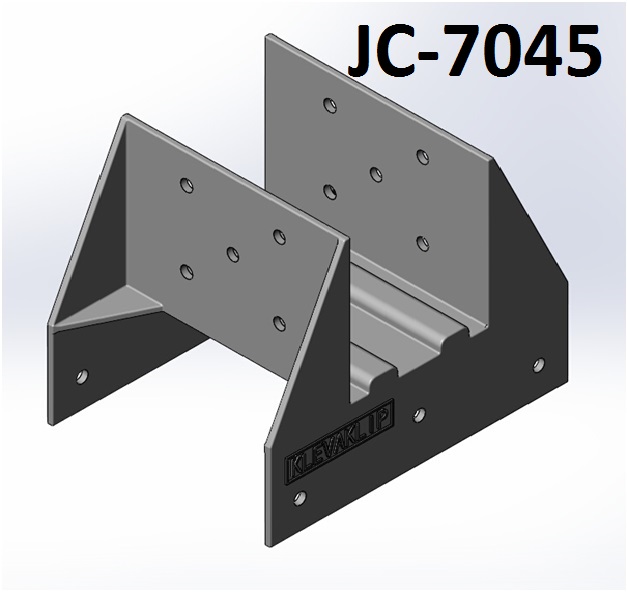

JC7045N	to attach 45mm width joist to 70mm width bearer	48

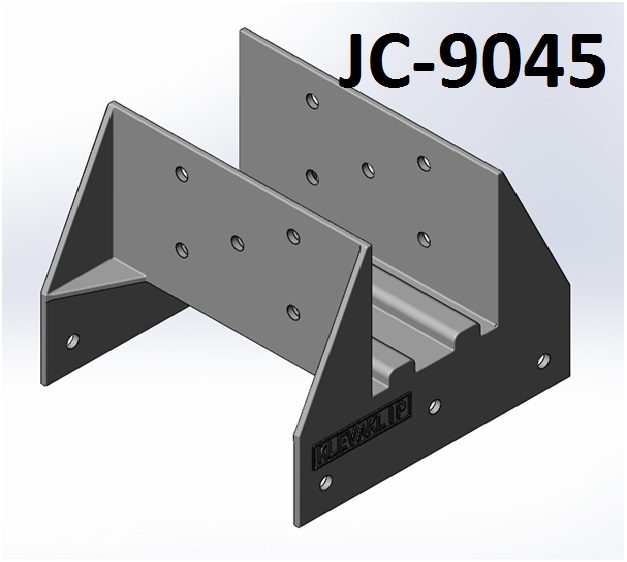

JC9045N	to attach 45mm width joist to 90mm width bearer	48

Installation Video

Installation Information

DOUBLE TRIPLE CONNECTOR

FIXING REQUIRED DOUBLE TRIPLE CONNECTOR TO BEARER:

2 fixings on one side of bearer and 2 fixings on top of bearer

FIXING REQUIRED DOUBLE TRIPLE CONNECTOR TO joist:

2 fixings on each side of joist

JOIST CONNECTOR

Fixings required joist connector to bearer:

2 fixings on each side of bearer
Cyclone areas C1 & C2 - 3 Fixings on each side of bearer (not suitable for areas C3 & C4)

Fixings required joist connector to joist:

Less than 1 metre off the ground - 1 fixing each side of joist
Higher than 1 metre off the ground - 2 fixings each side of joist
Cyclone areas C1 & C2 - 3 fixings each side of joist (not suitable for areas C3 & C4)

Approved Fixings:

35mm x 3.15mm timber connector nails
32mm x 2.7mm Hot Dipped Galvanised coilnails or equivalent (not suitable in cyclone areas)
35mm x 8g Galvanised stitching screws (not suitable in Cyclone areas)

Note: Stainless steel equivalents of the above should be used in high corrosion areas.
