Check out our product graph below for which product to use depending on your height situation. KlevaKlip can solve your problem from 35mm to 670mm "top of joist" and has a range of low to the ground deck building products making it faster, easier and less hassles to build your deck.
Decking Sub-Structure Products |
Connectors |
---|---|
Patio Deck Kit - for Super - Low decks over concrete slab/tiles 35mm (fixed). | FREP Joist Hanger ( Fibre Reinforced Engineering Polymer) suits 90mm x 45mm & 140mm x 45mm Joists. |
Optional Patio Deck Kit Height Adjuster - decks over concrete slab/tiles up to 65mm. | Double-Triple & Joist Connectors for attaching 45mm wide joists to 45mm,70mm and 90mm Bearers |
Adjustable Joist Support - for decks over concrete slabs 76mm - 220mm. | |
Multi-Purpose Support - provides top of joist/bearer heights 180mm - 430mm off ground | |
Adjustable Bearer Support - for decks 390mm to 67mm off the ground. |
Download Deck Build Prod Broch
How to achieve Min & Max Top/Bottom of Joist heights PDF
Watch our Patio Deck Kit Install Video
Enables super-low decks to be built over concrete or tiled surfaces and provides a top-of-joist height of 35mm (1.4inches) Fixed.
Being Engineered Aluminium profile won't rot like timber or rust like steel and the strong nylon base clips will last the life of your deck.
For further details please follow this link: https://klevaklip.com.au/Patio-Deck-Kit
Watch our Assembly Overview Video
Now available as an optional add-on- The Patio Deck Kit Height Adjuster, which clips into the standard system and allows the aluminium joist to be adjusted in small increments to a new maximum top of joist height of 65mm (2 9/6 inches).
This is ideal for instances whereby you need to counter:-
For further details please follow this link: https://klevaklip.com.au/Patio-Deck-Kit
Download Optional Patio Deck Kit Height Adjuster Brochure
Watch our Adjustable Joist Support AJH45G (Aus/NZ) Install Video
Watch our Adjustable Joist Support AJH38G (USA) Install Video

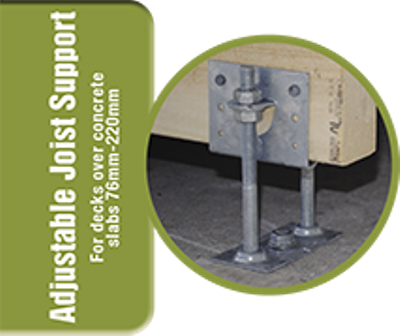

The Adjustable Joist Support has been designed specifically to enable decks to easily be built over concrete slabs in areas where limited ground clearance is available. It is ideal for use when the step-down from your door to your concrete slab is between 100mm / 4 inches (minimum) and around 260mm /10 inches (maximum).
There are three types of Adjustable Joist Supports for the Australian & New Zealand markets the AJ45KIT, AJH45G - both has been specifically designed to be used with 45mm wide treated pine timber joists and the AJH50G for 50mm wide steel or hardwood joists.
AJ45KIT comes with bolts, nuts, washers & dynabolts included.
AJH45G and the AJH50G does not include bolts,nuts,washers etc. These must be purchased via your merchant/hardware store. For further details please follow this link:
https://klevaklip.com.au/Adjustable-Joist-Support-Menu
The AJH38G (metrically measured) has been specifically designed to be used with 2 inch wide pressure treated timber joists for US markets.
Watch our MPS Assembly Overview Video

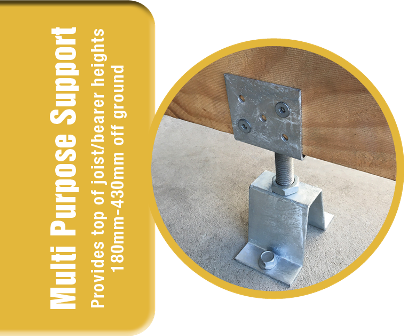

The Multi-purpose support has been designed as a mid-sized support to cater for the “gap” between our “Adjustable Joist Support” and our “Adjustable Bearer Support”
The Multi Purpose Support has excellent adjustability, along with the strength and versatility to be used with either bearer/joist combinations, or with joists on their own. Coming in a “kit” form, it is efficiently packaged and quick and easy to assemble. All parts are fully hot dip galvanised.
Watch our Bearer Supports Install Video
Every deck starts with the process of getting the substructure right - if it isn't properly spaced out and level, the chances of building the deck correctly are almost zero.
Therefore time must be spent on getting the posts or piers set to the correct height across the deck - a job made even more difficult if the ground is not level.

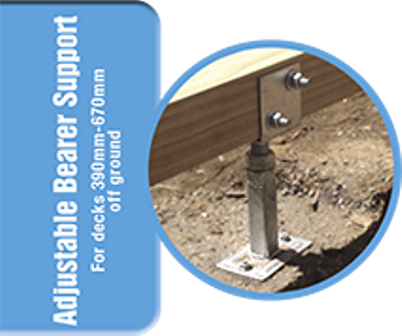

The clever people from KlevaKlip have introduced the Adjustable Bearer Support.
Extremely easy-to-use, and suited for decks up to approximately 600m off the ground, the Adjustable Bearer Support allows you to be much less critical with your height measurements in the knowledge that you can simply wind the bearer support up or down to set your perfect height.
It will save lots of time and make your job so much easier.
Watch our FREP Joist Hanger Install Video
Finally there is a reasonably priced, corrosion-proof joist hanger on the market.
The new FREP Joist Hanger ( Fibre Reinforced Engineering Polymer) is strong- engineered to last, light weight, easy to use, has no sharp edges, and will not corrode in any environment.
NJH9045 suits 90mm x 45mm Joists upwards
NJH14045 suits 140mm x 45mm Joists upwards
Watch our Joist Connector Install Video

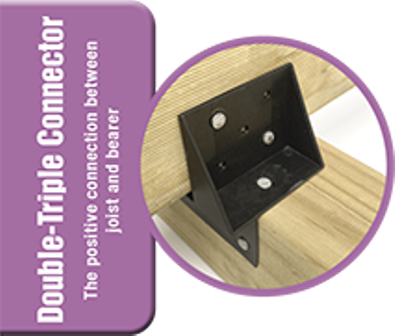

The range of KlevaKlip Double-Triple & Joist Connectors have revolutionised the way joists are attached to bearers.
An absolute must for every handyman and quickly becoming the preferred fixing method of many builders, the
Double-Triple & Joist Connectors makes the set-out and fixing off of your substructure a breeze.
