Watch our Traditional Metal Clips Installation

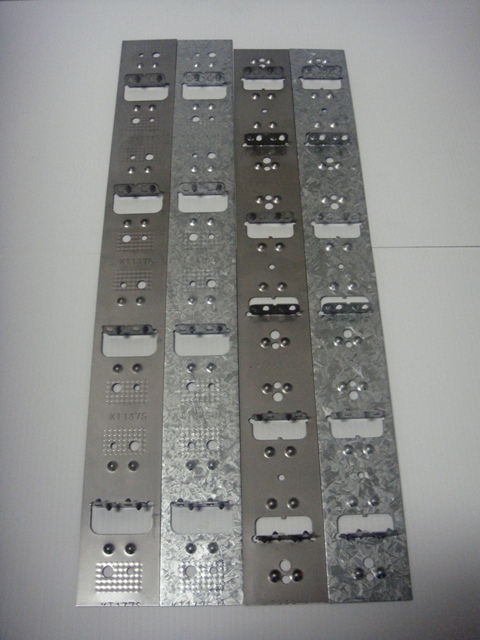

The Top-Fix Traditional Metal clips are mainly used for Bushfire-rated areas when using ModWood's 137mm Flame Shield® decking. They suit Timber Joists,Kiln Dried Hardwood Joists, Lysaght Firmlok Metal Joists, Metal RHS joists and C Purlins and are Top fixed into the joists. Available in galvanised steel or optional stainless steel to suit 88mm x 23mm, 137mm x 23mm or 137mm x 32mm (Marina) Modwood Natural Grain Collection (groove on Edges)
For H3 Laminated Veneer Lumber (LVL) joists please check with your supplier for suitability. F14 unseasoned hardwoods are not to be used due to their high shrinkage rates.
ModWood Snap-LOC / Metal Clips Brochure & Building Products
Traditional Metal Clips Brochure
Code | Material Type | Colour | Clip Type | Box Items | Size mm | Boards Held | Suitability for |
---|---|---|---|---|---|---|---|

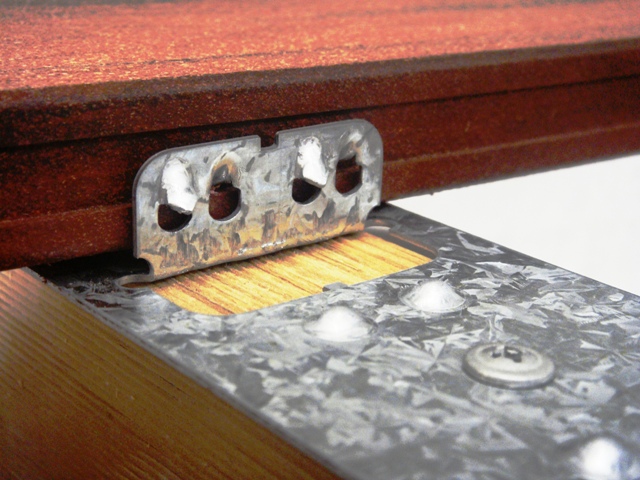

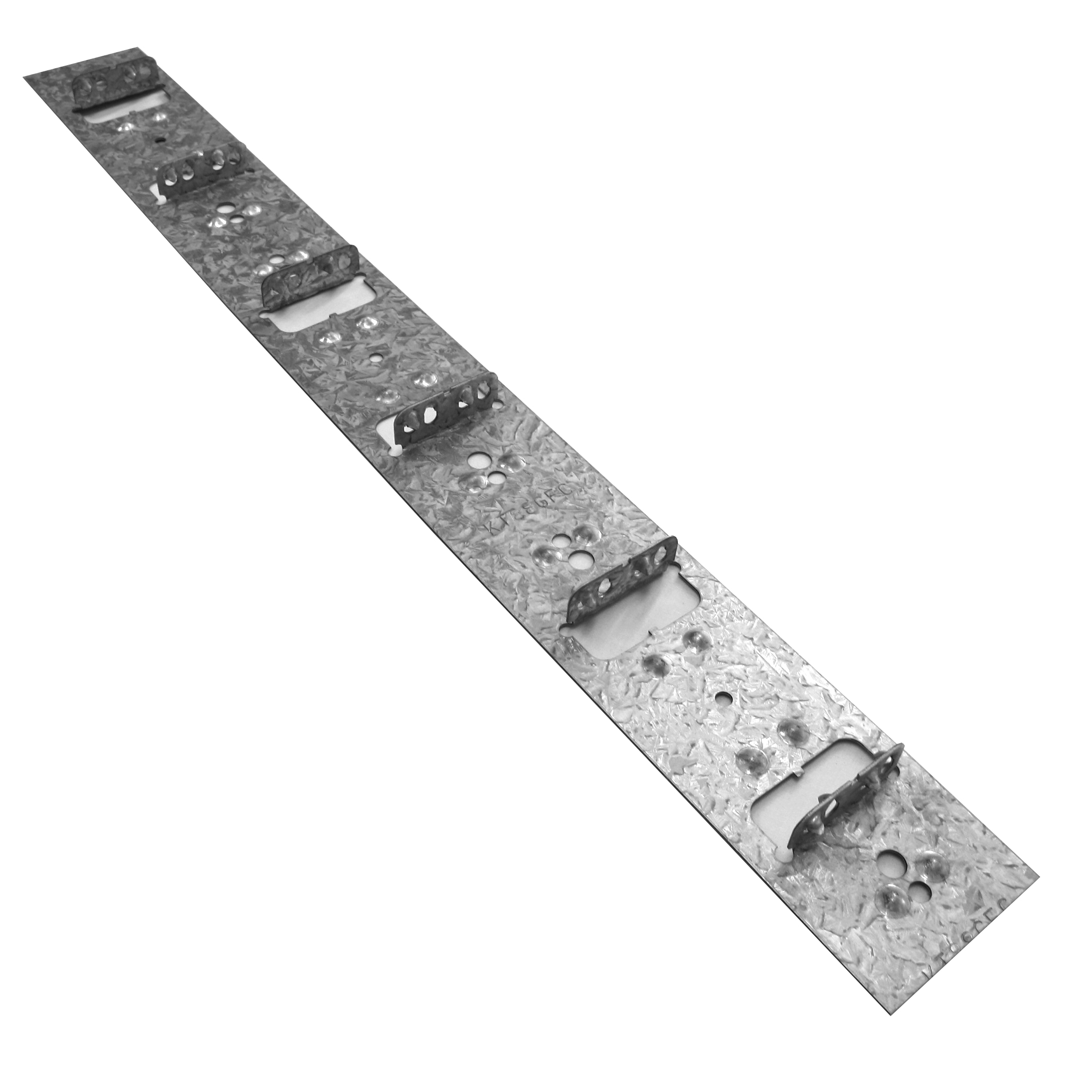

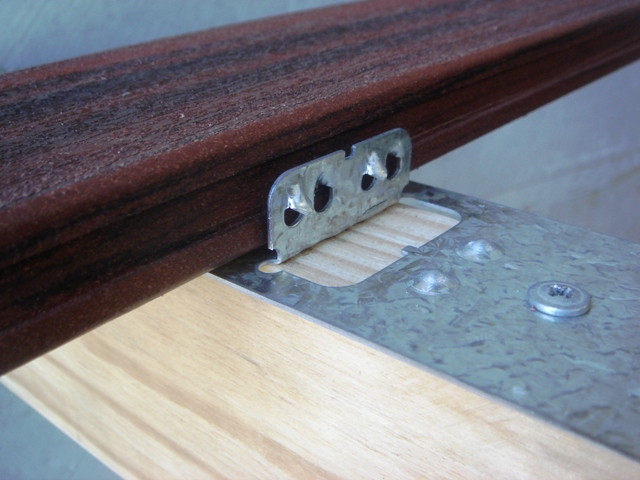

KT88G | Gal | Natural | Top-fix | 40 | 553x60mm | 6 | 88mm ModWood *NGC |

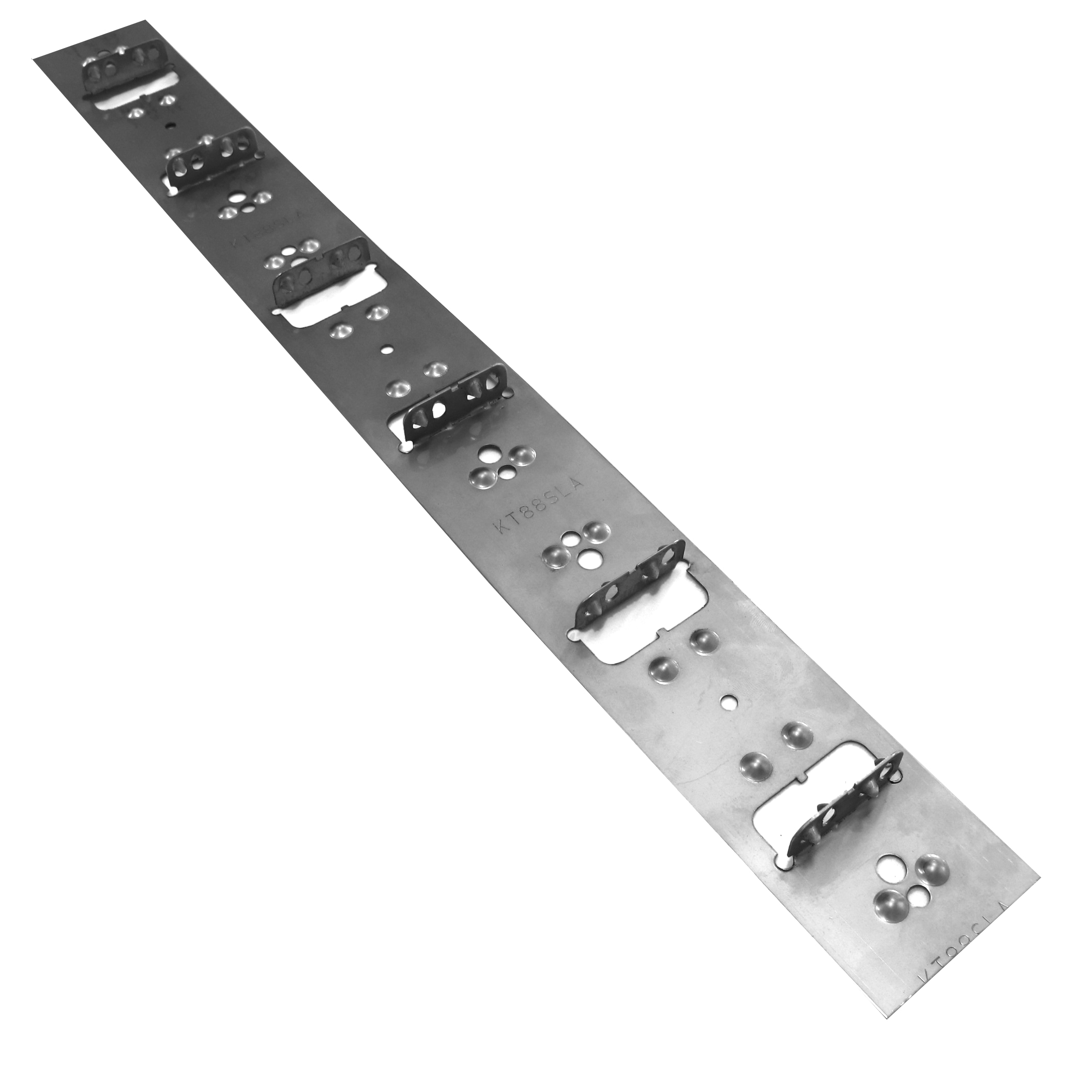

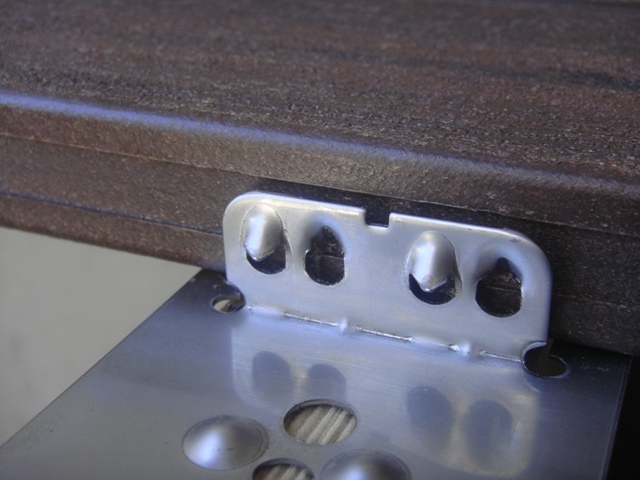

KT88S | Stainless | Natural | Top-fix | 40 | 553x60mm | 6 | 88mm ModWood *NGC |

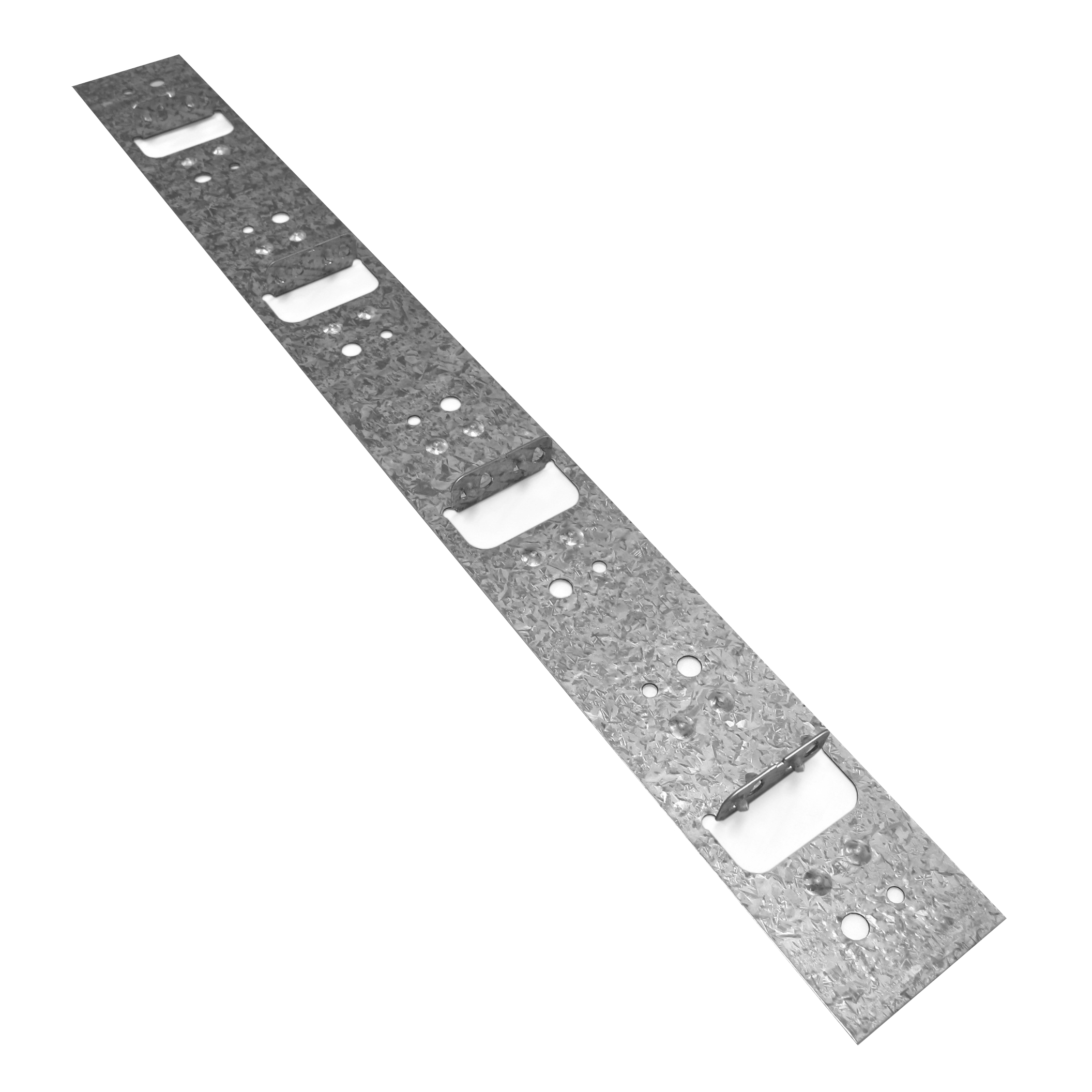

KT137G | Gal | Natural | Top-fix | 40 | 568x60mm | 4 | 137mm ModWood Flame Shield & *NGC |

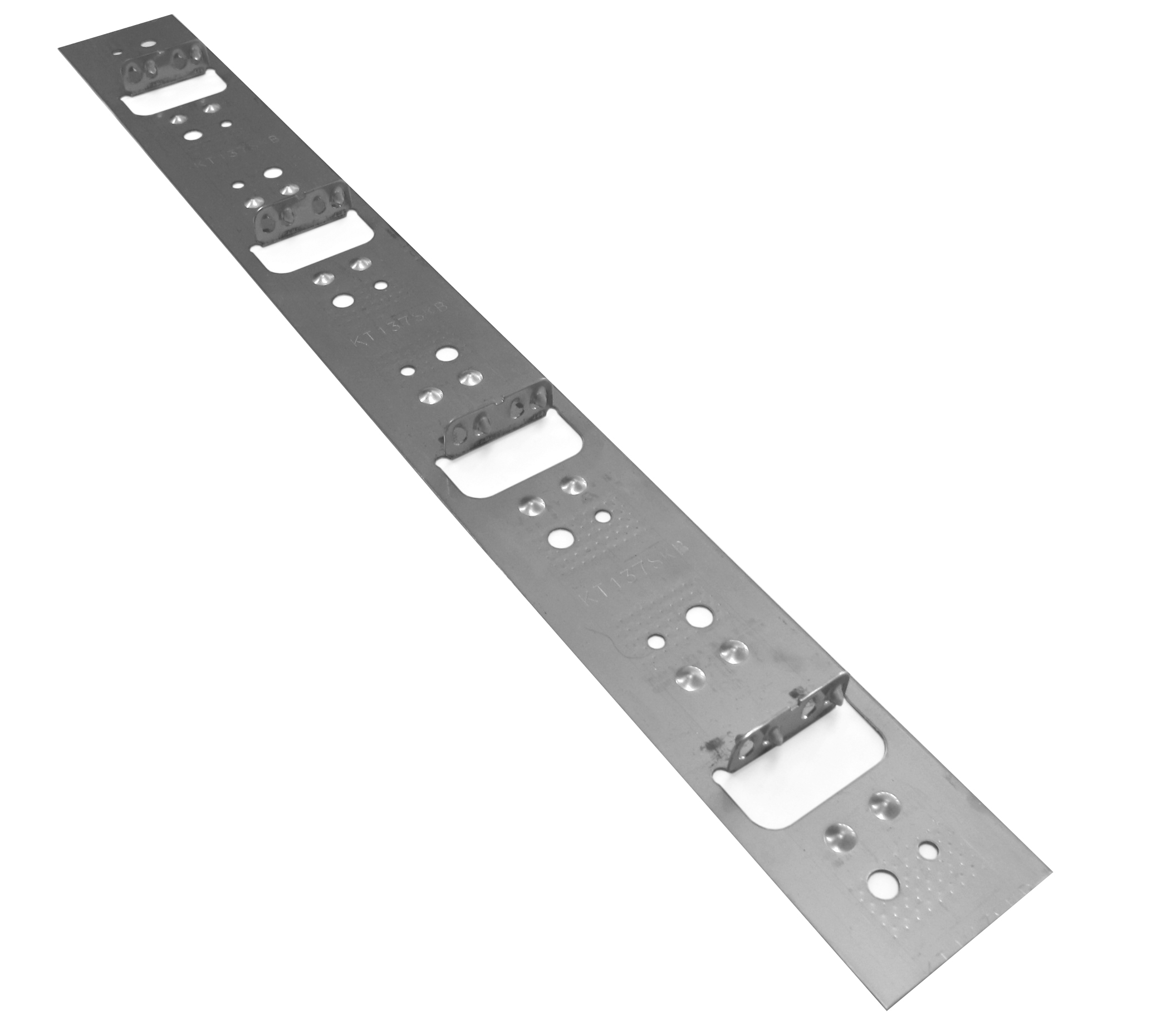

KT137S | Stainless | Natural | Top-fix | 40 | 568x60mm | 4 | 137mm ModWood Flame Shield & *NGC |
*NGC Natural Grain Collection
